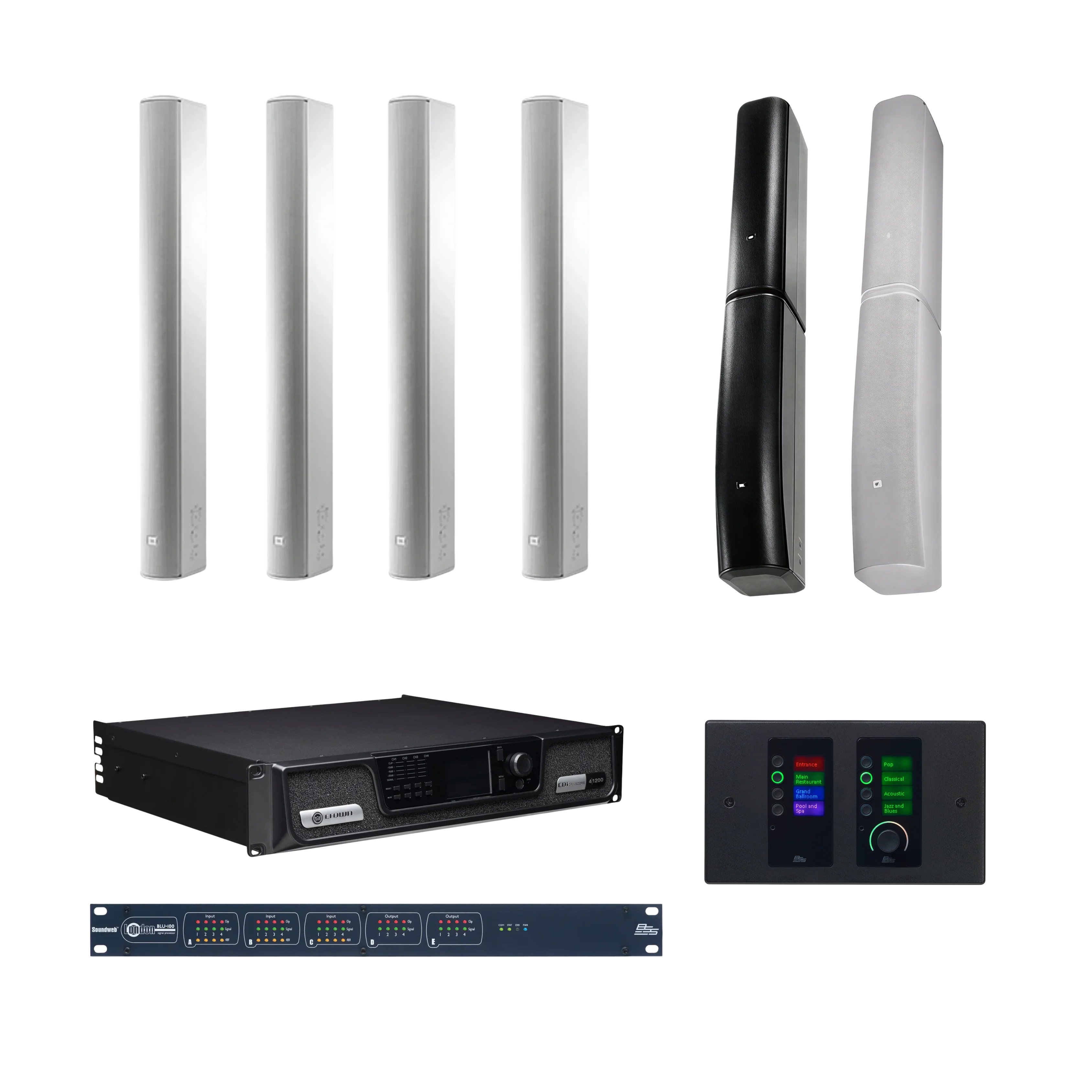

Harman Professional House of Worship Audio System - Gold Bundle
The Harman Professional House of Worship Audio System Gold Bundle is a complete installed audio solution designed for churches, chapels, temples, mosques, and multi-purpose worship halls. It combines powerful JBL CBT column loudspeakers for the main congregation area and side fills, a high-power Crown CDi 4|1200 installation amplifier, flexible BSS BLU-100 processing, and intuitive BSS EC-8BV wall control to deliver clear speech, musical worship, and even coverage across the room. Engineered for regular weekly services and mid-week events, the system provides a dependable, easy-to-operate foundation for spoken word, choir, band, and playback audio.
Key Features
- Complete Worship Audio Package: Includes 2 × JBL CBT 70J-1 + 70JE-1 array systems for the main congregation area, 4 × JBL CBT 100 column loudspeakers for side/overflow coverage, 1 × Crown CDi 4|1200 amplifier, 1 × BSS BLU-100 DSP, and 1 × BSS EC-8BV wall controller—everything needed for a professionally integrated house of worship sound system.
- Clear Speech to Every Seat: JBL CBT column arrays use Constant Beamwidth Technology™ to control where the sound goes, helping sermons, readings, and prayers remain clear from the front row to the back of the room, even in difficult acoustics.
- Balanced Sound for Music & Worship: The CBT 70J-1 + 70JE-1 system delivers wide 45 Hz – 20 kHz bandwidth with switchable “Music” and “Speech” modes, so the system can be optimised either for musical worship or maximum vocal clarity.
- High-Power Multi-Channel Amplification: The Crown CDi 4|1200 provides four channels of up to 1200 W each into 4/8 Ω or 70V/100V lines, giving plenty of headroom to drive the main arrays and fill speakers from a single amplifier frame.
- Smart, Flexible Audio Processing: The BSS BLU-100 offers 12 analog inputs, 8 outputs, and a 48-channel low-latency BLU link bus, allowing the installer to handle routing, EQ, dynamics, and system protection for multiple microphones, instruments, and playback sources.
- Simple Day-to-Day Control: The BSS EC-8BV wall controller provides a clear volume knob, eight programmable buttons, and dual colour LCD displays so volunteers or staff can select sources and adjust levels without specialist AV training.
- Discreet, Architecturally Friendly Design: Slim CBT columns mount close to the walls and are available in black or white, helping the loudspeakers blend into the architecture and keep visual focus on the platform and worship activity.
- Scalable for Future Ministry Needs: With network-capable BLU-100 DSP and a high-channel-count amplifier, the system can be extended to additional rooms, overflow spaces, or lobby areas as the congregation grows.
Specifications
JBL CBT column loudspeakers provide controlled vertical coverage and wide horizontal dispersion, helping speech and music remain clear and consistent throughout the seating area while keeping sightlines and architecture unobstructed. The main arrays use the CBT 70J-1 + 70JE-1 system to cover the primary congregation area.
| Main Array Type | JBL CBT 70J-1 + 70JE-1 Constant Beamwidth Technology™ column array system |
| Drivers (CBT 70J-1 + 70JE-1) | Eight 130 mm (5") LF drivers + sixteen 25 mm (1") HF drivers in combined array |
| Frequency Range (System, –10 dB) | 45 Hz – 20 kHz |
| Coverage (Selectable) | Vertical: 25° (narrow) or 45° (broad); Horizontal: 150° (typical through voice band) |
| Sensitivity (Music Mode) | Approx. 93–94 dB (2.83 V @ 1 m, depending on coverage setting) |
| Power Handling | 1000 W (4000 W peak) short-term rating; 700 W (2800 W peak) long-term rating |
| Nominal Impedance | 4 Ω (CBT 70J-1 + 70JE-1 system) |
| Colour Options | Black or White |
| Net Weight | 20.4 kg (45 lb) |
| Environmental | Weather-treated drivers, fiberglass-reinforced ABS cabinet, and painted aluminum grille suitable for indoor or protected outdoor use |
| Mounting Hardware | Includes coupler plate and swivel (pan/tilt) wall bracket with multiple M6 insert points for flexible mounting options |
The JBL CBT 100LA-1 is a slim line-array column loudspeaker used for side and overflow coverage. It offers very wide horizontal coverage and selectable vertical patterns, helping to maintain clear, even sound in wider or longer worship spaces.
| System Type | Line array column loudspeaker with Constant Beamwidth Technology™ |
| Drivers | Sixteen 50 mm (2") full-range drivers |
| Frequency Range (–10 dB) | 80 Hz – 20 kHz |
| Coverage | Horizontal: 150° (average 1 kHz – 4 kHz) Vertical (Narrow mode): 15° (speech / music mode) Vertical (Broad mode): 40° (speech / music mode) |
| Sensitivity (2.83 V @ 1 m) | Narrow: 96 dB (speech mode), 93 dB (music mode) Broad: 93 dB (speech mode), 90 dB (music mode) |
| Power Handling | 325 W (1300 W peak), 2-hour rating; 200 W (800 W peak), 100-hour rating |
| Nominal Impedance | 8 Ω (in Thru mode) |
| Transformer Taps | 70V/100V: 120 W, 60 W, 30 W (plus 15 W at 70V only), plus 8 Ω bypass |
| Dimensions (H × W × D) | 1000 × 98.5 × 153 mm (39.4 × 3.8 × 6.0 in) |
| Net Weight | 7.2 kg (15.8 lb) |
| Colour Options | Black or White |
| Included Accessories | Swivel (pan/tilt) wall-mount bracket |
A 4-channel Crown CDi DriveCore™ installation amplifier delivering up to 1200 W per channel with integrated DSP and 70V/100V direct-drive capability—ideal for driving multiple CBT arrays and fill speakers from a single, efficient amplifier.
| Channels | 4 |
| Output Power (per channel) | Up to 1200 W into 4 Ω, 8 Ω, 70V, or 100V; 600 W into 16 Ω; 850 W into 2 Ω (model/mode dependent) |
| Amplifier Technology | High-efficiency Crown DriveCore™ Class-D topology for reduced heat and high reliability |
| On-Board DSP | 96 kHz, 32-bit processing with input routing, delay, parametric EQ, crossovers, output EQ, output delay, and LevelMAX™ limiting, plus JBL loudspeaker tunings |
| Control & Monitoring | Network control via Harman Audio Architect, front-panel interface, and GPIO/AUX port for preset recall and status monitoring |
| Load Compatibility | Stereo/dual mode: 2–16 Ω and 70V/100V; bridge mono mode: 4–16 Ω and 140V/200V |
| Dimensions (W × H × D) | 19" × 3.5" × 14.71" (48.3 × 8.9 × 37.36 cm) |
| Net Weijght | 9.12 kg (20.1 lbs) |
A networked signal processor providing 12 inputs, 8 outputs, and a 48-channel BLU link digital audio bus. The BLU-100 handles all core processing, routing, and loudspeaker protection for the system and can integrate into larger Soundweb London networks.
| Analog I/O | 12 analog mic/line inputs with software-selectable gain and 48 V phantom power, plus 8 analog outputs |
| Digital Audio | 48-channel, low-latency BLU link digital audio bus over Cat 5e |
| Processing | Open-architecture DSP configured via HiQnet™ London Architect with a wide range of processing and logic objects |
| Control I/O | 12 control inputs and 6 logic outputs for integration with wall controllers and external systems |
| Network | Ethernet port for configuration, control, and monitoring |
| Dimensions (H × W × D) | 1U rackmount; approx. 1.75" × 19" × 9.0" (45 × 483 × 229 mm) |
| Weight | Approx. 2.9 kg (6.4 lb) |
An Ethernet wall controller with eight buttons, a push/rotary volume knob, and dual colour LCD displays. The EC-8BV gives volunteers and staff simple, clearly labelled control of system volume, source selection, and scene recall.
| User Controls | 1 programmable push/rotary encoder with encoder ring, 8 programmable multicolour buttons, and 2 multicolour 64 × 128-pixel LCDs |
| Power & Connectivity | Single Ethernet port for configuration, control, monitoring, and PoE power over a Cat 5e cable |
| Operating Modes | Multiple controller modes including 1-zone, 4-zone, 8-zone, 4×4 zone, and hybrid operation for flexible system layouts |
| Sleep & Security | Sleep function to dim LEDs when not in use, remote lock/unlock, and local unlock via PIN entry |
| Form Factor | Dual-gang US decora or EU version; powered via PoE with up to 100 m cable run |
| Colour Options | Black or White |
| Net Weight | Approx. 0.7 kg (1.5 lb) |
Bundle Includes
- Loudspeakers: 2 × JBL CBT 70J-1 + 70JE-1 column array systems (main), 4 × JBL CBT 100 column loudspeakers (fill/overflow)
- Amplifier: 1 × Crown CDi 4|1200
- DSP: 1 × BSS BLU-100
- Wall Controller: 1 × BSS EC-8BV
Application Examples
| Traditional Churches & Chapels | Delivers clear sermons, readings, and organ or piano reinforcement for seated congregations. |
| Contemporary Worship Spaces | Supports worship bands, vocal teams, and playback with balanced, powerful music and speech. |
| Multi-Purpose Sanctuaries | Handles services, weddings, funerals, conferences, and community events with consistent coverage. |
| Prayer Halls & Fellowship Rooms | Provides intelligible speech reinforcement and low-profile loudspeakers that respect the room aesthetic. |
| Overflow & Auxiliary Spaces | Can be extended to lobbies, overflow rooms, or ancillary halls using BLU link and additional amplifiers. |
The Harman Professional House of Worship Audio System Gold Bundle delivers clear speech, musical clarity, and user-friendly control in a discreet, scalable package. By combining JBL CBT column arrays with Crown CDi amplification and BSS BLU-100 processing and EC-8BV control, it provides a powerful, professional audio backbone for modern worship and community gatherings.
The Harman Professional House of Worship Audio System Gold Bundle is a complete installed audio solution designed for churches, chapels, temples, mosques, and multi-purpose worship halls. It combines powerful JBL CBT column loudspeakers for the main congregation area and side fills, a high-power Crown CDi 4|1200 installation amplifier, flexible BSS BLU-100 processing, and intuitive BSS EC-8BV wall control to deliver clear speech, musical worship, and even coverage across the room. Engineered for regular weekly services and mid-week events, the system provides a dependable, easy-to-operate foundation for spoken word, choir, band, and playback audio.
Key Features
- Complete Worship Audio Package: Includes 2 × JBL CBT 70J-1 + 70JE-1 array systems for the main congregation area, 4 × JBL CBT 100 column loudspeakers for side/overflow coverage, 1 × Crown CDi 4|1200 amplifier, 1 × BSS BLU-100 DSP, and 1 × BSS EC-8BV wall controller—everything needed for a professionally integrated house of worship sound system.
- Clear Speech to Every Seat: JBL CBT column arrays use Constant Beamwidth Technology™ to control where the sound goes, helping sermons, readings, and prayers remain clear from the front row to the back of the room, even in difficult acoustics.
- Balanced Sound for Music & Worship: The CBT 70J-1 + 70JE-1 system delivers wide 45 Hz – 20 kHz bandwidth with switchable “Music” and “Speech” modes, so the system can be optimised either for musical worship or maximum vocal clarity.
- High-Power Multi-Channel Amplification: The Crown CDi 4|1200 provides four channels of up to 1200 W each into 4/8 Ω or 70V/100V lines, giving plenty of headroom to drive the main arrays and fill speakers from a single amplifier frame.
- Smart, Flexible Audio Processing: The BSS BLU-100 offers 12 analog inputs, 8 outputs, and a 48-channel low-latency BLU link bus, allowing the installer to handle routing, EQ, dynamics, and system protection for multiple microphones, instruments, and playback sources.
- Simple Day-to-Day Control: The BSS EC-8BV wall controller provides a clear volume knob, eight programmable buttons, and dual colour LCD displays so volunteers or staff can select sources and adjust levels without specialist AV training.
- Discreet, Architecturally Friendly Design: Slim CBT columns mount close to the walls and are available in black or white, helping the loudspeakers blend into the architecture and keep visual focus on the platform and worship activity.
- Scalable for Future Ministry Needs: With network-capable BLU-100 DSP and a high-channel-count amplifier, the system can be extended to additional rooms, overflow spaces, or lobby areas as the congregation grows.
Specifications
JBL CBT column loudspeakers provide controlled vertical coverage and wide horizontal dispersion, helping speech and music remain clear and consistent throughout the seating area while keeping sightlines and architecture unobstructed. The main arrays use the CBT 70J-1 + 70JE-1 system to cover the primary congregation area.
| Main Array Type | JBL CBT 70J-1 + 70JE-1 Constant Beamwidth Technology™ column array system |
| Drivers (CBT 70J-1 + 70JE-1) | Eight 130 mm (5") LF drivers + sixteen 25 mm (1") HF drivers in combined array |
| Frequency Range (System, –10 dB) | 45 Hz – 20 kHz |
| Coverage (Selectable) | Vertical: 25° (narrow) or 45° (broad); Horizontal: 150° (typical through voice band) |
| Sensitivity (Music Mode) | Approx. 93–94 dB (2.83 V @ 1 m, depending on coverage setting) |
| Power Handling | 1000 W (4000 W peak) short-term rating; 700 W (2800 W peak) long-term rating |
| Nominal Impedance | 4 Ω (CBT 70J-1 + 70JE-1 system) |
| Colour Options | Black or White |
| Net Weight | 20.4 kg (45 lb) |
| Environmental | Weather-treated drivers, fiberglass-reinforced ABS cabinet, and painted aluminum grille suitable for indoor or protected outdoor use |
| Mounting Hardware | Includes coupler plate and swivel (pan/tilt) wall bracket with multiple M6 insert points for flexible mounting options |
The JBL CBT 100LA-1 is a slim line-array column loudspeaker used for side and overflow coverage. It offers very wide horizontal coverage and selectable vertical patterns, helping to maintain clear, even sound in wider or longer worship spaces.
| System Type | Line array column loudspeaker with Constant Beamwidth Technology™ |
| Drivers | Sixteen 50 mm (2") full-range drivers |
| Frequency Range (–10 dB) | 80 Hz – 20 kHz |
| Coverage | Horizontal: 150° (average 1 kHz – 4 kHz) Vertical (Narrow mode): 15° (speech / music mode) Vertical (Broad mode): 40° (speech / music mode) |
| Sensitivity (2.83 V @ 1 m) | Narrow: 96 dB (speech mode), 93 dB (music mode) Broad: 93 dB (speech mode), 90 dB (music mode) |
| Power Handling | 325 W (1300 W peak), 2-hour rating; 200 W (800 W peak), 100-hour rating |
| Nominal Impedance | 8 Ω (in Thru mode) |
| Transformer Taps | 70V/100V: 120 W, 60 W, 30 W (plus 15 W at 70V only), plus 8 Ω bypass |
| Dimensions (H × W × D) | 1000 × 98.5 × 153 mm (39.4 × 3.8 × 6.0 in) |
| Net Weight | 7.2 kg (15.8 lb) |
| Colour Options | Black or White |
| Included Accessories | Swivel (pan/tilt) wall-mount bracket |
A 4-channel Crown CDi DriveCore™ installation amplifier delivering up to 1200 W per channel with integrated DSP and 70V/100V direct-drive capability—ideal for driving multiple CBT arrays and fill speakers from a single, efficient amplifier.
| Channels | 4 |
| Output Power (per channel) | Up to 1200 W into 4 Ω, 8 Ω, 70V, or 100V; 600 W into 16 Ω; 850 W into 2 Ω (model/mode dependent) |
| Amplifier Technology | High-efficiency Crown DriveCore™ Class-D topology for reduced heat and high reliability |
| On-Board DSP | 96 kHz, 32-bit processing with input routing, delay, parametric EQ, crossovers, output EQ, output delay, and LevelMAX™ limiting, plus JBL loudspeaker tunings |
| Control & Monitoring | Network control via Harman Audio Architect, front-panel interface, and GPIO/AUX port for preset recall and status monitoring |
| Load Compatibility | Stereo/dual mode: 2–16 Ω and 70V/100V; bridge mono mode: 4–16 Ω and 140V/200V |
| Dimensions (W × H × D) | 19" × 3.5" × 14.71" (48.3 × 8.9 × 37.36 cm) |
| Net Weijght | 9.12 kg (20.1 lbs) |
A networked signal processor providing 12 inputs, 8 outputs, and a 48-channel BLU link digital audio bus. The BLU-100 handles all core processing, routing, and loudspeaker protection for the system and can integrate into larger Soundweb London networks.
| Analog I/O | 12 analog mic/line inputs with software-selectable gain and 48 V phantom power, plus 8 analog outputs |
| Digital Audio | 48-channel, low-latency BLU link digital audio bus over Cat 5e |
| Processing | Open-architecture DSP configured via HiQnet™ London Architect with a wide range of processing and logic objects |
| Control I/O | 12 control inputs and 6 logic outputs for integration with wall controllers and external systems |
| Network | Ethernet port for configuration, control, and monitoring |
| Dimensions (H × W × D) | 1U rackmount; approx. 1.75" × 19" × 9.0" (45 × 483 × 229 mm) |
| Weight | Approx. 2.9 kg (6.4 lb) |
An Ethernet wall controller with eight buttons, a push/rotary volume knob, and dual colour LCD displays. The EC-8BV gives volunteers and staff simple, clearly labelled control of system volume, source selection, and scene recall.
| User Controls | 1 programmable push/rotary encoder with encoder ring, 8 programmable multicolour buttons, and 2 multicolour 64 × 128-pixel LCDs |
| Power & Connectivity | Single Ethernet port for configuration, control, monitoring, and PoE power over a Cat 5e cable |
| Operating Modes | Multiple controller modes including 1-zone, 4-zone, 8-zone, 4×4 zone, and hybrid operation for flexible system layouts |
| Sleep & Security | Sleep function to dim LEDs when not in use, remote lock/unlock, and local unlock via PIN entry |
| Form Factor | Dual-gang US decora or EU version; powered via PoE with up to 100 m cable run |
| Colour Options | Black or White |
| Net Weight | Approx. 0.7 kg (1.5 lb) |
Bundle Includes
- Loudspeakers: 2 × JBL CBT 70J-1 + 70JE-1 column array systems (main), 4 × JBL CBT 100 column loudspeakers (fill/overflow)
- Amplifier: 1 × Crown CDi 4|1200
- DSP: 1 × BSS BLU-100
- Wall Controller: 1 × BSS EC-8BV
Application Examples
| Traditional Churches & Chapels | Delivers clear sermons, readings, and organ or piano reinforcement for seated congregations. |
| Contemporary Worship Spaces | Supports worship bands, vocal teams, and playback with balanced, powerful music and speech. |
| Multi-Purpose Sanctuaries | Handles services, weddings, funerals, conferences, and community events with consistent coverage. |
| Prayer Halls & Fellowship Rooms | Provides intelligible speech reinforcement and low-profile loudspeakers that respect the room aesthetic. |
| Overflow & Auxiliary Spaces | Can be extended to lobbies, overflow rooms, or ancillary halls using BLU link and additional amplifiers. |
The Harman Professional House of Worship Audio System Gold Bundle delivers clear speech, musical clarity, and user-friendly control in a discreet, scalable package. By combining JBL CBT column arrays with Crown CDi amplification and BSS BLU-100 processing and EC-8BV control, it provides a powerful, professional audio backbone for modern worship and community gatherings.
